Applications for emissions analysis and monitoring with model 350

Engine and Diesel Testing with recommended Set #4
Thousands of internal combustion engines are located throughout the world. They
range in size from small emergency generators to massive 16 cylinder diesels
powering the largest ocean vessels. Stationary engines are used for generating
electricity, compressing natural gas, pumping fluids, used in oil and gas production,
used by municipalities for combined heating and power stations, and a myriad of
other uses.

Generally speaking, there are three types of stationary engines:

Spark ignited, 4-stroke, lean burn or rich burn or "clean burns"
Spark ignited, 2-stroke lean burns, and
Diesel engines

The exhaust gases contain pollutants such as NOx, SO2, CO, Hydrocarbons, soot
and particulates. Each engine type has its own particular emission signature.
However, engine manufactures and the supporting industries have developed
innovative ways of controlling and substantially reducing emissions. Measurements of
the exhaust gas are an essential component of engine control and help demonstrate
continued air quality improvement.

Use of gas analysis for e.g.

Measurement during the development process
Measurements as part of long-term tests
Measurements as part of certification procedures
Measurements for state and Federal compliance

Flow chart of a stationary engine system with measuring points

Recommended Turbine Set #4 of model 350 (low NOx and low CO Kit)

Includes: O2, CO low, NO low, NO2 (low NOx), fresh air purge valve (extends the CO range to 20,000 ppm)
CO Dilution system (max of 6 sensors)
Control Unit with back-lit display and integrated printer
Peltier gas chiller and water removal system
5m (16-foot) remote control cable
5m (16-foot) hose with special patented Teflon-lined hose and 30cm (12") probe
Basic Excel® Software
Transport case
Spare parts & calibration certificate

Gas Turbine Plants with recommended Set #4

Stationary gas turbines were originally developed as air craft engines and are applied to drive generators. Installations are used to generate peak load electrical power and often, together with a waste heat boiler, to generate heat energy. The flue gas composition is very similar to that of gas fired furnaces. Typically natural gas, landfill gas or biogas is used as fuel.

Use of gas analysis for e.g.

Monitoring the turbine emission for optimum operation
Monitoring emission concentrations for compliance with regulations

Process flow chart of a gas turbine plant with measuring points

Measured
component
Typical values
MP 1 MP 2
O2 15 ... 18% 15% (Reference
value)
NOx 0 ... 60 ppm <35ppm
CO 0 ... 30 ppm <15ppm
CO2
Dust
Flue gas temp. 300...400°C (572 ... 752°F)
Gas flow
Humidity

Typical values of a gas turbine plant

Hint: A dynamic partial vacuum exists at the measuring point MP 1. The sampling point therefore must be carefully sealed in order to prevent ambient air from being sucked in and cause incorrect measurements.

Measuring point locations and analysis tasks

  • MP 1 at the turbine oulet for monitoring the turbine emission (optimum operation)
  • MP 2 at the stack for emission monitoring (compliance with regulations)

Recommended Turbine Set #4 of model 350 (low NOx and low CO Kit)

  • Includes: O2, CO low, NO low, NO2 (low NOx), fresh air purge valve (extends the CO range to 20,000 ppm)
  • CO Dilution system (max of 6 sensors)
  • Control Unit with back-lit display and integrated printer
  • Peltier gas chiller and water removal system
  • 16-foot remote control cable
  • 16-foot hose with special patented Teflon-lined hose and 30cm (12") probe
  • Basic Excel® Software
  • Transport case
  • Spare parts & calibration certificate

Process Heaters and Boilers with recommended Set #1

High temperatures are required in almost all plants in the chemical and petrochemical industry to produce final or intermediate products from raw materials. In most cases, superheated steam is used for this purpose and is generated by process heaters. The figure below shows such a plant schematic with a process heater that delivers steam to a double-walled reactor vessel where the production process performs at high temperatures.

Use of gas analysis for e.g.

Optimum adjustment of the burner (Fuel saving and emission reduction)
Monitoring emission concentrations (compliance with regulations)

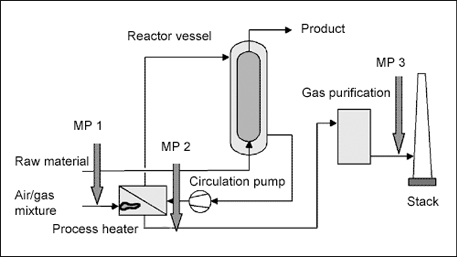

Process flow chart of a process heater plant with measuring points

Measuring point locations and analysis tasks

  • MP 1 at the burner for fuel composition control
  • MP 2 behind the burner for burner optimization (energy cost reduction)
  • MP 3 at the stack for emission monitoring (compliance with regulations)



Set#1: Upgrade Kit – model350S
This configuration satisfies basic combustion analysis and provides unprecedented
value for easy upgrading at any time.

  • (Max of 6 sensors) includes: O2 and CO
  • Control Unit with back-lit display and integrated printer
  • 1,8m (6-foot) remote control cable
  • 2,1m (7-foot) hose and 30cm (12") probe
  • Spare parts & carry case & calibration certificate

Great Options – Add industrial probes and easy Emission software for easy trending and graphing analysis, or sample gas conditioning for longer term testing.

Power Plants with recommended Set #4

Coal-fired power plants belong to the group of thermal power plants that generate electricity from coal.

The coal is crushed, dried, and ground in a mill. Together with preheated combustion air the powdered coal is blasted into the furnace and burned at temperatures of approximately 1000°C (1832°F). The furnace is surrounded by the heat exchanger which comprises a tightly packed pipe system with boiler water flowing through. The water is heated up and thus fresh steam is generated with a pressure of approximately 200bar (2900 psi) to drive a turbine. The flue gases escape from the furnace, pass through different gas scrubbers and are released into the atmosphere through the stack. The steam, after leaving the turbine, is cooled down to water and recharged into the boiler system again.

Use of gas analysis for e.g.

Optimum adjustment of combustion components (fuel cost reduction, profitability of
the plant operation)
Performance control of SCR's and scrubbers
Monitoring emission concentrations for compliance with regulations
Safety of personel and plant (CO monitoring)
SCR optimizing – measuring NOx to determine ammonia injection grid performance. • Multiple analyzers can be used simultaneously for profiling ammonia injection rates

Process flow chart of a coal-fired power station with measuring points

Measured
components
Typical values
MP 1 MP 2
O2 5 ... 9% 5 ... 9%
CO 10 ... 5000 ppm 10 ... 5000 ppm
CO2 15 ... 18%
NOx 500 ... 600 ppm
SO2 500 .. 2000 ppm
Dust 2 ... 20 g/m3
Flue gas temp. appr. 1000°C (1832°F) appr. 1000°C (1832°F)
Humidity 10 ... 15%

Typical values of a coal-fired power station

Measuring point locations and analysis tasks

  • MP 1 at the furnace for controlling constant combustion and air value, identification of CO nests and providing reliable operation
  • MP 2 at the furnace outlet for combustion control and optimization (profitability)
  • MP 3 at the denitrification plant for performance control
  • MP 4 at the stack for emission monitoring (compliance with regulations)

Warning!
For measurements after the electrostatic filter, the sample probe must be
grounded to avoid dangerous static electric shocks.

Recommended Turbine Set #4 of model 350 (low NOx and low CO Kit)

  • Includes: O2, CO low, NO low, NO2 (low NOx), fresh air purge valve (extends the CO range to 20,000 ppm)
  • CO Dilution system (max of 6 sensors)
  • Control Unit with back-lit display and integrated printer
  • Peltier gas chiller and water removal system
  • 5m (16-foot) remote control cable
  • 5m (16-foot) hose with special patented Teflon-lined hose and 30cm (12") probe
  • Basic Excel® Software
  • Transport case
  • Spare parts & calibration certificate

SCRs and Process Mining with recommended Set #5

Real-Time Multi-Unit Analysis

Trouble shooting large combustion applications or tuning ammonia injected SCRs has always been a slow, challenging and tedious process. It often involves sampling at numerous port locations, over long periods of time and often with large bulky analyzers. Plus testing conditions are unpredictable due to adverse weather and climate locations. Conclusions drawn from data taken at various points-in-time are suspicious at best or very expensive at worst.

Understand more about your SCRs and make qualified decisions using testo's unique 350 multi-analyzer solution. Determine the cause-and-effect relationships in real time. Complete the testing and see results in minutes not hours and days. The testo system reduces labor costs, provides uncanny flexibility, gives you more valuable parameters and the confidence to make the right decision.

Set #5: SCR/Multi-Port Analysis

Includes: O2, CO, NO, NO2 (NOx), fresh air purge valve (extends the CO range to well over 100,000 ppm)
CO Dilution system (max of 6 sensors)
Control Unit with back-lit display and integrated printer
Peltier gas chiller and water removal system
5m (16-foot) remote control cable
A 330mm (13") engine probe with 2,1m (7') teflon-lined hose including pressure relief (no
thermocouple) and 1/4" tube fitting. This configuration provides an excellent means
to connect to: customer Teflon lines and sample probes; flow meter and shutoff
valves to control high pressure; heated sample lines.
Basic Excel® Software
Transport case
Spare parts & calibration certificate
CAN-Bus multi-unit control interface includes advanced easyEmission software

Refineries with recommended Set #2

Refineries (more precisely crude oil refineries) comprise a variety of different processing plants at one site where marketable products such as gasoline, diesel oil, plastics, fibres, detergents etc. are produced from crude oil in several processing steps. The production steps proceed at high temperatures causing the need of numerous firing plants in one refinery.

The refining process starts with distillation of crude oil at atmospheric pressure and appr. 350°C (662°F), whereby gasoline, gas oil, or kerosine are separated. The residues are either utilized as heavy fuel oil or further processed in a vacuum distillation at 400°C (752°F) to create lubricating oil or bitumen, for instance.

The great variety of products requested by the market, however, cannot be realized through distillation alone. Special processes are used to transform the crude oil distillates into light hydrocarbons (cracking processes) with following refinement steps (reforming processes). Both processes operate with the use of catalysts at temperatures of 500°C (932°F) and above. The figure below shows schematically the distillation columns, the discharge of final and intermediate products and the exhaust gas (tail gas) treatment through incineration and purification.

Refineries are emission sources for pollutants such as SO2, NOx, H2S, particulate matter and many hydrocarbons. Emissions result from diffuse as well as concrete sources, e.g. firing plants. Emission reduction is achieved by using appropriate fuels, special firing measures and flue gas purification plants.

Use of gas analysis for e.g.

Optimum adjustment of the burner (fuel saving and preventive emission control)
Monitoring the gas purification plant performance
Monitoring emission concentrations (compliance with regulations)
Ensuring safety of personell and plants (fire and explosion protection)

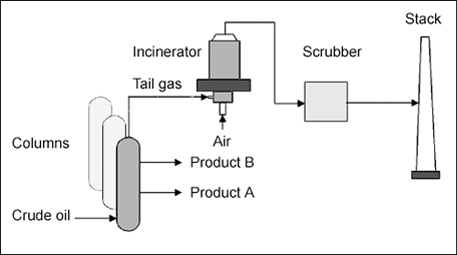

Process flow chart of a refinery (without measuring points)

Measuring tasks
Because of the very large variety of different plants in a single refinery complex no specific measuring point locations are mentioned here. Once more, however, it is referred to the large number of firing plants operated in a refinery for steam generation and tail gas incineration, which offer many applications to gas analysis.

Set #2: Standard Set
The best selling Set for NOx testing on boilers and burners.

  • Includes: O2, CO, NO, NO2 (NOx) and automatic fresh air purge valve (max of 6 sensors)
  • Control Unit with back-lit display and integrated printer
  • Peltier gas chiller and water removal system
  • 1,8n (6-foot) remote control cable
  • 2,1m (7-foot) hose with special patented Teflon-lined hose and 12" probe
  • Basic Excel® Software
  • Spare parts & carry case & calibration certificate

Cement/Lime Production with recommended Set #2 (it is suggested that the CO2 module is included in this Set)

The material known as cement consists of ground cement clinker mixed with gypsum. It is the end product of a firing process in the cement furnace. Raw materials are limestone (CaCO3) and additives such as clay, ash, or sand. Powdered coal, oil, and waste material (used tires) are utilized as fuel. The major process steps are:

Grinding of the raw materials, drying of the material using hot exhaust gases, heating of the raw meal up to 800°C (1472°F) with removal of CO2, firing in a rotating kiln, cooling, mixing with gypsum, and grinding to cement. The exhaust gases pass through an evaporation cooler and some gas cleaning plants (not shown in the figure below) including an electrostatic filter before they are released to the atmosphere.

Use of gas analysis for e.g.

Optimization of the evaporation cooler operation
Protection of the electrostatic filter by monitoring CO
Control of sampling probe position of the stationary analyzer
Monitoring emission concentrations for compliance with regulations

Process flow chart of cement production with measuring points

Measuring point locations and analysis tasks

  • MP 1 between calcinator and cooler to determine a plant balance
  • MP 2 between cooler and filter to determine plant balance and filter efficiency
  • MP 3 at the stack for emission monitoring (compliance with regulations)



Component MP 1 in raw gas MP2 and 3 in clean gas
Typ. values Meas. range
(extended)
Typ. values Meas. range
(extended)
O2 up to 10% 0 .. 21 % see raw gas
CO 100..10000 ppm 0 ..10000 ppm
(0,1 .. 20%)
see raw gas
CO2 ca. 20 .. 40% 0 ..25%

(0,1 .. 100%)

see raw gas
SO2 low 0 .. 5000 ppm
NOx 200..700 ppm 0.. 5000 ppm
Dust up to 100 g/m3 up to 100 mg/m3
Temp. 300-400°C (572-752°F) 100-150°C (212-302°F)
Flow
Humid.

Typical values of a cement production plant

Hint:
1. High dust loading of raw gas and sometimes of ambient air
2. Very high concentration of CO2, partially outside the measuring range
3. The O2 sensor is, at high O2 concentrations, cross-sensitive against high CO2 concentrations
4. Gas flow measurements are not possible at high dust concentrations and high gas flow velocities
5. The sampling probe must be grounded when mounted at a stack built of bricks!
6. Depending on the kind of fuel also limit values of lead (as dust) as well as of thallium and cadmium may be relevant.

Set #2: Standard Set
The best selling Set for NOx testing on boilers and burners.

  • Includes: O2, CO, NO, NO2 (NOx) and automatic fresh air purge valve (max of 6 sensors)
  • Control Unit with back-lit display and integrated printer
  • Peltier gas chiller and water removal system
  • 1,8m (6-foot) remote control cable
  • 2,1m (7-foot) hose with special patented Teflon-lined hose and 30cm (12") probe
  • Basic Excel® Software
  • Spare parts & carry case & calibration certificate

Ceramics/Bricks - with recommended Set #3

The term ceramic describes various kinds of material resp. products made from clay and additives and solidified by firing at high temperatures. The raw materials are Kaolin (a clay of certain composition), quartz (SiO2) and feldspars (a rocky mineral of different silicates). The materials are prepared by grinding, washing, filtering, and mixing, pass then through the shaping processes and are, at the end of the process, fired in a tunnel kiln in several steps: pre-firing at appr. 900°C (1652 °F), firing (sintering) at 1400°C (2552 °F) and finally cooling. Colors and glaze are applied either during the sintering phase or in a separate step. Firing temperature and the composition of the oven atmosphere are decisive for the quality (solidity and appearance) of the final product. The exhaust gases of the oven pass through several gas cleaning installations; very often the collected powdered material is recycled to the process.

Use of gas analysis for e.g.

Optimum adjustment of the burner for fuel saving
Control of gas composition for securing product quality
Monitoring the level of drying for process control)
Monitoring emission concentrations for compliance with regulations

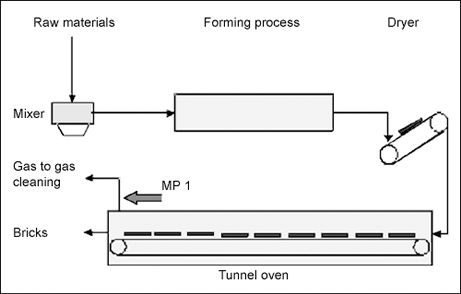

Process flow chart of ceramic production with measuring points

Measured
component
Typical values
MP 1-3 in
the raw gas
MP 4 in the
clean gas
O2 13 ... 16% 13 ... 16%
NOx 30 ... 40 ppm 30 ... 40 ppm
NO
NO2
CO 40 ... 60 ppm 40 ... 60 ppm
CO2
SO2 700 ... 1300 ppm 450 ... 900 ppm
HCl
HF
Dust
Gas temp.
Humidity 10 ... 14% 10 ... 14%

Typical values of a ceramic processing plant

Hint: Aggressive components (HF, HCl) may be present in the exhaust gas. Therefore the use of a heated sampling system is recommended.

Measuring point locations and analysis tasks

  • MP 1-3 in the raw gas between the different firing steps to optimize burneradjustment, to secure high and constant product quality, and to determine the drying level.
  • MP 4 (not shown in the figure above) in the clean gas to monitor the performance ofthe cleaning installations and the emission concentrations(compliance with regulations).

Bricks
Bricks are manufactured from clay that is fired in brick kilns. The raw materials are crushed, mixed and dried to a given level of humidity and then pass through a forming and drying process before the are placed on a car riding through the tunnel oven for firing at 900-1300°C (1652-2372 °F).

The flue gases mainly include dust particles but also sulfur and nitrogen oxides or HF may be present.

Use of gas analysis for e.g.

  • To perform optimum burner adjustment (fuel saving)
  • To ensure product quality
  • To determine the level of drying
  • To monitor compliance with the emission regulations

Process flow chart of brick production with measuring point

Measured
components
Typical values
MP 1 at the
tunnel oven
MP 2 in the
clean gas
O2 16%
NOx
NO
NO2
CO 1600...1800 ppm
CO2 3...5%
SO2
Dust
Gas temp.
Humidity

Typical values of brick production

Measuring point locations and analysis tasks

  • MP 1 at the tunnel oven for optimum burner adjustment, to ensure high and constant product quality, and to determine the level of drying
  • MP 2 (not shown in the figure above) in the clean gas to monitor performance of the cleaning process and the emission concentrations for compliance with the regulations.

Set #3: Engine Set

  • Includes: O2, CO, NO, NO2 (NOx), fresh air purge valve (extends the CO range to well over 100,000 ppm)
  • CO Dilution system (max of 6 sensors)
  • Control Unit with back-lit display and integrated printer
  • Peltier gas chiller and water removal system
  • 5m (16-foot) remote control cable
  • A 330mm (13") engine probe with 2,1m (7') teflon-lined hose including pressure relief (no thermocouple) and 1/4" tube fitting. This configuration provides an excellent means to connect to: customer Teflon lines and sample probes; flow meter and shutoff valves to control high pressure; heated sample lines.
  • Basic Excel® Software
  • Transport case
  • Spare parts & calibration certificate

Please note that standard components in all sets include:

  • Automatic testing programs
  •    – 4 on-board user-defined
  • On board printing and remote control
  • Sensor temperature control
  • Continuous temperature compensation
  • Differential pressure sensors
  • Stack/ambient/analyzer temperature
  • RS232
  • 256 K memory values
  • Flow & velocity (with Pitot tube)
  • CO over-range protection
  • Sample flow rate

Automatic calculations for:
CO2, efficiency, excess air , loss, corrected NOx, lbs/mmBtu, Tons/day, gm/hp-hr, and more.

Sets 2, 3 and 4 include:
An integrated sample gas conditioner (peltier chiller) fresh air valve (for automatic sampling and programming)

TOP
