see the body with different eyes

Medical thermography, also known as thermal imaging or digital infrared thermal imaging (DITI), is a non-invasive diagnostic technique that uses an infrared camera to produce images that show variations in temperature on the surface of the skin. The images can help identify areas of increased heat, which may be indicative of inflammation, injury, or other underlying conditions.

Thermography is often used in combination with other diagnostic tools, such as X-rays, MRIs, or ultrasound, to provide a more comprehensive picture of a patient's health. It is commonly used to diagnose conditions such as musculoskeletal injuries, breast cancer, cardiovascular disease, and neurological disorders.

It's important to note that thermography is not a substitute for other diagnostic techniques, and it should not be used to replace conventional medical testing. However, it can provide valuable information to healthcare providers in the diagnostic process.

In conclusion, medical thermography is a useful tool in the diagnostic process, but it should be used in conjunction with other diagnostic techniques to provide the most comprehensive understanding of a patient's health.



Medical Thermography Applications include:

Musculoskeletal conditions: Thermography can be used to diagnose and monitor conditions such as arthritis, back pain, carpal tunnel syndrome, and other musculoskeletal conditions.

Breast health: Medical thermography is commonly used as an adjunctive tool in the detection and monitoring of breast cancer. It can help identify areas of increased heat, which may indicate the presence of cancer or other breast health issues.

Cardiovascular health: Thermography can be used to assess blood flow and detect areas of decreased circulation, which may indicate a risk for cardiovascular disease.

Neurological disorders: Thermography can be used to diagnose conditions such as migraines, headaches, and neck pain, as well as to monitor the progress of conditions such as multiple sclerosis.

Pain management: Thermography can be used to monitor the effectiveness of pain management treatments and to identify areas of pain and inflammation.

Dental health: Thermography can be used to diagnose and monitor conditions such as temporomandibular joint (TMJ) syndrome, jaw pain, and other dental health issues.

Skin conditions: Thermography can be used to diagnose and monitor conditions such as eczema, psoriasis, and other skin conditions.

It's important to note that medical thermography is not a replacement for other diagnostic techniques, such as X-rays, MRIs, or biopsies, and it should be used in combination with these techniques for the most comprehensive understanding of a patient's health.

Advantages
Visualization of the problem
Easy Scan Anywhere
Non invasive
No radiation
Painless
No contact with the body

Thermography is a crucial addition to any wellness program

Why fever measurement with thermography?

An important indicator for an infection is increased body temperature (compared to other people in the immediate surroundings), generally known as fever. Thermography is the ideal method for scanning not just individuals, but also large flows of people. To do this, the temperature at the inner corner of the eye is measured, and an alarm triggered if it deviates. This allows persons with increased body temperature to be identified quickly and reliably, and to be isolated for more exact testing.



Model 400M
High Performance Thermal Camera

Ιntroducτion.
400M infrared thermal camera is designed for human body temperature detection.
With high IR resolution 400x300 and temperature measurement accuracy
(≤±0.4℃) ensures the high-precision rapid human body temperature detection
on a 5-inch 720P LCD display.Theergonomic rotating LCD and lens design
makes it convenient for human body temperature screening.
Based on an open Android operating system design, it works not only as a
thermal camera but also a portable body temperature rapid screening
system.

Features and Benefits
•Measurement Range 20℃~60℃, accurancy≤±0.4℃
•Rotating LCD display up 270°C for easy viewing angle
•Rotating lens detents up to 70°C for easy viewing angle
•Android based operation system with open platform for
various APP developments and convenient program updating
•Powerful onboard analysis and reporting capabilities
•Multiple image presentation including IR, visible, PIP and MIF
•Wi-Fi data transfer

Application: HealthCare

Specifications
IR resolution: 384×288
Detector type VOx/25μm/7.5~14μm
Frame rate: 25Hz/9Hz
NETD: 40mk
Focal length: 25mm/F1.0
Field of view (FOV): 21.7°×16.4°
Spatial resolution (IFOV): 0.99mrad
Min focus distance: 0.4m
Focus: Electric, Automatic Image Presentation
LCD Display: 5",1280×720 High Light Touch Screen
Viewfinder: 1280×960 LCOS Screen
Brightness contrast: Automatic, Manual, Fixed
Image mode: IR image, Visual image, PIP, MIF
Color palettes: 8
Digital zoom: 1.1~4x
Temperature Measurement Range: 20℃~60℃
Accuracy:≤±0.4℃ (target temperature 32℃~38℃)
Spot/Line/Area: 5 spots, 5 lines, 5 Areas
Analysis Info Storage: Saved with image (spot,line,areas)
Automatic Tracking: Either max. or min.
Isotherm: Upward, downward
Warning: Support image and voice warning
Image Format: Full Radiometric (JPG)
Image Internal Storage: Built-in 16G, SD card 16G (maximum support 32G)
Report Creation: PDF format, support print by connecting Wifi
Video Format: H.264(with temperature information)
Video Storage: Manual
Hardware : Visual camera of 5 million pixels, Illuminator, laser, Wi-Fi, Microphone (Volume adjustable),
Speaker (Volume adjustable), Digital compass, GPS, Light sensor
Interface Micro USB 2.0,SD card,Gigabit Ethernet,Tripod,Mini HDMI
Battery: Rechargeable Li-ion Battery(Certified to UN38.3), battery time>4 hours, support Sleeping mode
Working Temperature: 15°C~35°C
Storage Temperature: ﹣40°C~70°C
Protection rating: IP54
Weight: 1350g
Dimensions 206mm×145mm×135mm
Standard Accessories: Li-ion battery,Power supply adapter, Adapter plug (5 pcs), Shoulder strap, USB cable,
HDMI cable, Network cable, Quick Start Guide, User Manual, Data Download Card, SD card(16G),
Hard transport case
Optional Accessories: Tripod, wireless mouse & keyboard & Micro USB OTG cable, 24 inch monitor
(HDMI interface) & changeover plug., Li-ion battery, Pouch, Battery charger, Bluetooth earphone,
Extended lens, Lens bag



Series 120H - Fever Screening Economy Handheld Thermal Camera

Series 120H Fever Screening Thermal Camera is a fast temperature detection tool, which can be used to detect human temperature from a safety distance with accuracy of ±0.5℃. It is an economical and practical thermal camera that could meet the needs of primary temperature screening well.
Series 120H is not only suitable for flexible temperature screening, but can also be deployed at the entrances and exits of the public areas, making it an ideal device to improve the efficiency of epidemic  prevention and protect public health.

Features
o Fast temperature detection, automatic fever identification and alarm
o 1 meter safe detection distance, low risk of infection
o Support to save up to 100,000 images, can check temperature data
o TYPE-C interface, 2.5H fast charge, battery time up to 8H.
o Compact and portable, suitable for mobile detection,
can also be fixed on optional tripod

Specifications
IR resolution 120x90@17μm
Detector type Uncooled Vox/7.5~14μm
Frame Rate 25HZ
NETD 60mk
Focal Length/F# 2.28mm/F1.13
FOV 50°x38°
IFOV 7.6mrad
Focus : Fixed
Display type 2.4inch LCD display
Display Resolution 240*320
Image Mode IR Image
Filter Range 20℃-50℃
Accuracy ≤±0.5℃ (Ambient temperature 25 ℃, target distance
1m, target temperature 32 ℃ ~ 42 ℃, )
Measurement Point Central point
Alarm Over-temperature alarm, color prompt (preset value: 37.3℃)
Storage Media TF card (maximum support: 32G)
Image Format Full Radiometric (JPG) (120*90)
Communication USB TYPE-C, TF Card slot
Tripod Interface YES
Battery Type Rechargeable Li-ion battery
Operating Time ＞8H
Charging Time DC,≤2.5H
Operating
Temperature -10℃~50℃
Encapsulation IP54，2-meter Drop Test
Certification CE/ROHS/FCC
Weight 350g
Dimensions 194mm x 61.5mm x 76mm
Std Accessories Wristband,Quick start Guide,Charging adapter, Plug,
USB Type-C cable, Download card,16G TF Card

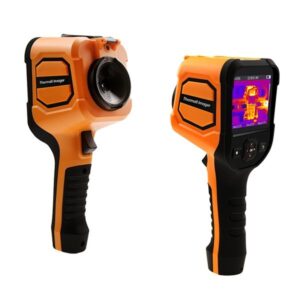

Series 200 - Fever Screening Handheld Thermal Camera

The 200 series thermal imaging camera accurately quantifies the actual recorded heat and detects images of the entire target object in real time in the form of a surface, so that you can accurately identify a suspicious high temperature.



















also displayed as a normal digital photo
with the face temperature on it

MAIN FEATURES
• Handheld infrared thermal imager with lithium ion battery powered (4-6 hours autonomy)
• Continuous real time reading with “automatic detection” of the highest temperature spotted with a detection time of only 0,5 sec from 0,5 to 1,5 meters distance;
• 3.5” TFT - 640X480 resolution on board display;
• Battery life 4-6 hours;
• BODY MODE SET UP: precision ±0,5° - range 20-45 °C;
• Sound alarms when detecting dangerous temperature (manually set by the user);
• Image storage capacity 6 GB built-in flash memory, accessible via Micro USB;
• Lightweight rugged design, withstands daily handling and use;
• Tripod mount option for fixed installation;
• Specifically designed to monitor body temperature non-contact detection, so zero risks of cross infection, in a non- invasive way in schools, businesses, offices, during FESTIVALS, EXHIBITIONS, EVENTS as well as public places in general;

FOUR COLOURS IMAGING MODE
The 200 Series Thermal Imager provides 4 type of color palettes functions: SPECTRA, BLACKHOT, IRON, WHITEHOT for you to choose the appropriate palette to better show the details you need of the targeted surface/object.















TECHNICAL SPECIFICATIONS

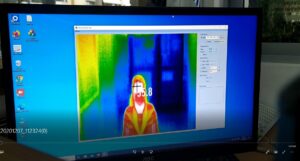

Sigma series 21 - measuring distance 0.5...3m with accuracy of ± 0.3℃

Specifications
Infrared resolution 210x260
Field of View 37°
Thermal sensitivity 0.07℃
Spatial resolution 1.7mrad
Infrared spectral ban: 8μm to 14μm
Measuring Distance: 0.5...5m
Temperature measurement range: 20°C...45°C
Color palette: Rainbow
Power supply: 12VDC, 2A, 5.5 DC Head
Video output: RJ45 interface
Alarm output: Alarm trigger (optional)
Temperature alarm function: Can set high and low temperature with sound alarm
Focusing: Fixed focal length / minimum focal length is 0.5m

Features
• It can be applied to small areas such as entrances, stores, etc.,
as well as large areas with dense traffic of persons.
• The detection time is less than 0.5 seconds
• Temperature accuracy ±0.3℃
• Supports abnormal temperature alarm function
• High-sensitivity infrared thermal imaging monitoring for 24 hours, and information visualization
• Accurately locating high temperature measurement spots with reduced false reporting rate

Sigma model 22











MAIN FEATURES
• Specifically designed to monitor body temperature with non-contact detection in a non invasive way during FESTIVALS, EXHIBITIONS, EVENTS or any places open to public in general;

• Fixed mount purposes, infrared thermal imager & video camera all in one, it can be placed at access gates for unattended temperature recognition and access control;

• Voice alarms when detecting temperature above safety standards;

• Data transfer via Ethernet connection in continuous real time reading with “automatic detection” of the highest temperature spotted - detection time 0,5 sec;

• “Multiple” body temperature readings with a precision better than ±0,3 °C in a range from 20°C to 45°C @ a distance from 0,5 to 5 meters;

• Automatic picture taking function once exceeded safety temperature set up by the operator;

• Wall & Tripod mounts available as a separate accessory;

• Dedicated software for handling read out parameters;

TECHNICAL SPECIFICATIONS
Infrared resolution 210*160
visible light resolution 1920x1080 pixels
Real time visible & thermal image
Shooting Angle 37°
Detection time 0,5 seconds
Thermal sensitivity 0.07 °C
Spatial resolution 1.7mrad
Warm up time 10 min
Infrared spectral band 8μm to 14μm
Power supply type 12 Volts - DC power supply
Pc connection Ethernet
Image format JPG - 1920*1080 pixel
Temperature measurement range 20°C-45°C
Reading accuracy < ±0.3°C
Alarm function Alarm once identify high & low temperature
Focusing method Fixed focal lens, minimum operative distance 0,5 meters
Test Distance 0.5 – 5 meters
Color mode spectral
Operation time 24/7
Weight & Dimensions 1,325 Kg. - width 140 x depth 275 x height 103 mm.

Series Sigma 204

A Thermal Camera that can be installed fast, plug & play, without software, for multiple persons scanning from a distance up to 3 meters, with measurement accuracy of ± 0,3 ° C.

Suitable rapid temperature scanning of multiple moving people at the same time, in Factories, Banks, Insurance Companies, Schools, Shopping Centers, Office Buildings and other Public Spaces

Main Features

• Computer and black body are not required.
• Effective measurement distance is around 3m and can measure around 5 people at the same time.
• Locking the target within 0.1s, the measurement accuracy is ±0.3°C.
• The device is easy for installation, it can be installed within a few minutes

Model		Series Sigma 204
Thermal	IR Resolution	320 x 240
	Display Resolution	1920 x 1080
	NETD	<60mk
	Colour Palette	Black Heat/White Heat/Iron Red/Rainbow
	Field of View	55 x 42
	Focus Length	4mm
Digital	Sensor	1/2.8 inch CMOS
	Pixels	2 Megapixel
	Max Resolution	1920 x 1080
	Field of View	55x42
	Light	Led Alarm Light
Functions	Temperature Measurement Range	0C..60C / 32C…45C
	Temperature Distance Measurement	0.8 - 3.5m
	Alarm Response Time	0.1s
	Simultaneous temperature measurement targets	5 persons
	Accuracy	0.3C
Interface & Protocols	Communication Interface	WiFi Interface, Power Interface, HDMI Interface
	Alarm Output	Sound & Light Alarm Signal Output
	Network Protocols	IEEE 802.11a/b/g/n/ac
General	Working temperature	-40C….+65C
	Humidity	<90%
	Power Supply	12VDC
	Power Consumption	<10W
	Weight	228g
	Protection Rating	IP54
	Size	90mm(L) x 56mm(W) x 28mm(H)

Sigma Series 300 and Series 600 with ±0.3℃ Accuracy & Measuring Distance of 1～5 meters with target temperature between 33°C~42°C

The Sigma Series 300 and Series 600 accurate temperature measurement thermal cameras can be widely used in medical temperature measurement, body temperature screening, animal husbandry, machine vision, high-precision power detection, high-precision industrial detection and other industries. It can realize real-time temperature information transmission, accurate detection, fast screening and so on. In particular, its elevated body temperature screening function can be widely used in airports, railways, stations, terminals, schools, and other densely populated places, to achieve rapid screening and avoid congestion.

  Features
• Measurement accuracy ±0.3C
• Effective temperature measurement distance from 1m to 5m
• Frequency 50Hz, Gigabit network: support temperature data transmitting realtime
• Auto focus, fast and precise temperature measuring
• Spot/line/area/isotherm analysis tools, simpler and more flexible to retrieve temperature data
• Compact size: easily install in small space
• Support multi-protocols: TCP, UDP, ICMP, DHCP, RTSP
• Patented intelligent compensated temperature measurement algorithm: accuracy of ±0.3C
• Auto focus
• Professional analysis software
• SDK support
• Professional image quality

Specifications

Model	Sigma Series 300	Sigma Series 600
Detector type	VOx Uncooled Infrared FPA
Resolution	384 × 288		640 × 512
Focal Distance	7,8 mm		15 mm
Lens control	Supports auto focus
Focus Type	Athermal
FOV(Horizon×Vertical)	47 ° × 35,6 °		34,2 ° × 27,4 °
IFOV	0,93mrad		2.1mrad
Measuring Range	0 ° C ~ 50 ° C
Measurement accuracy @ambient temperature 16°C ~ 32°C (with blackbody)	±2°C @Target temperature 0°C~20°C
	±0.6°C @Target temperature 20°C~33C°
	±0.3°C @Target temperature 33°C~42°C
	±0.6°C @Target temperature 42°C~50°C
Effective measurement distance	1m ~ 5m
Network Interface	RJ45
Network Protocol	TCP 、 UDP 、 ICMP 、 IGMP 、 DHCP 、 RTSP
Palettes	18
Supply voltage	10-36VDC
Typical consumption @25°C	≤3W		≤3.3W
SDK	supported

Standard set includes

Camera, adapter bracket, Network cable ×1, Power cable ×1, Blackbody (1 unit), Power adaptor, Tripod ×2, Extension shaft ×1
Needed by user:
Computer with i5 and above CPU, 8G and above memory, 64-bit win10 system, supports Gigabit network
Display: >1920 × 1080 resolution
Power adapter: 10 ～36VDC, 12VDC is recommended





Sigma Smart Wireless Thermal Fever Scanning Camera

WIFI - RECORD - ALARM - WORKS WITH BATTERY ALSO
an intelligent camera that uses thermal imaging technology and network processing system to perform high-speed temperature measurement, screening, recording and real-time surveillance video. It is a complete epidemic prevention solution integrating body temperature screening and pre-warning monitoring.
Built-in warning system, which can realize on-site alarm of body temperature abnormality. Built-in network transmission module, can realize remote monitoring, remote transmission of temperature measurement results, and push abnormal body temperature information. Built-in battery, it can work for 8 hours, and can be equipped with support frame for temporary control on site.

Temperature Screening Action

When the device detects someone into the monitored area, voice guidance is heard " Please go to the temperature measuring point for temperature measurement ".
2. When the body pass the temperature area, within 1 meter distance and 30 degrees of the camera, the device will measure the temperature and determine it in 0.5 seconds.
3. According to the temperature data, when temperature is normal, the device indicates that the body temperature is normal and instantly returns to normal temperature measuring state.
4. According to the temperature data, when the body temperature exceeds 37.3, the device will immediately enter into the alert mode, trigger the built-in alarm siren, voice reminding temperature abnormality, and push to the terminal synchronously.
5. Each temperature measurement process is completed in 0.5-second sensorless multipoint, the device synchronously displays the real-time terminal, and synchronously stores the temperature superposition chart, temperature data and temperature measurement video.
6. The temperature data are calculated in real time and displayed synchronously according to daily statistics.

A Digital screen can be installed with TV software of Findcam, connect the smart camera via hot pot straightly or WIFI,cable and other local areanetwork (LAN), can also connect online via remote

Technical Specifications
Thermal Module
Thermal imagery Sensor 1024PIXS
Thermal LENS 5mm
Temperature Distance 0.2-1,0M
Temperature Accuracy ±0.3°C
Thermal pixel time constant <4ms
Temperature angle 32 degrees left and right, 32 degrees up and down
Hardware
Processor HI3516EV200

Image sensor 2 Megapixels, 1 920 * 1080 CMOS Sensor

Frame Rate 1~30fps Min.

Illumination Color: 1 .5 Lux; W/B: 0 Lux with IR LED ON

Lens/ Visual Angle 3.6mm/100°
Apply system Software version IOS7.1, Android 4.0 and above
Operating system Linux
Recording Mode Wholeday recording, timing recording and alarm recording
Video Storage Support Max 1 28G TF Card
Audio Compression G.71 1 A
Audio Input Built-in 38dB microphone
Audio Output Built-in speaker (8Ω 2W)
Protocols TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, NTP.UPnP, P2P etc
Wireless WiFi 802.1 1 b/g/n wireless network                                                                      Security Gate Installation

Network Interface 1 RJ45 1 0M / 100M Ethernet port
Detection High body temperature, >37.3
Battery 2pcs 3000ma 1 8650 battery
General specification
Operating temperature: 5° c ~ + 37 ° c
Maximum power <5w, 5V USBpower supply
Size 21 6mm*63mm*1 1 4m
Package size 254mm*1 50mm*1 40mm
Weight 735g

236 Series

Fever Thermal Imaging Warning Systems

Fever Thermal Imaging Warning Systems for Multi-person tracking in crowded public places such as airports, stations, factories, schools, and commercial centers

Fever Warning Systems are applied to mass fever screening in crowded public places, which help to detect people with a potential fever and may contain or limit the spread of the Coronavirus through identification of infected individuals showing fever symptoms. 236 Series combines advanced technology such as thermography human body temperature measurement algorithm and AI intelligent face recognition to make the equipment accurate and easy to use.

236 Series is equipped with various powerful functions. Multi-person tracking can ensure that no persons are missed. Custom warning zones and high-temperature shielding settings can avoid interference from other high-temperature objects. When detect the febrile people, it supports automatic warning, tracking and photo taking for storage which is convenient to query and classify management. 236 Series is the ideal equipment for epidemic prevention in public places such as airports, stations, factories, schools, and commercial centers.

Features
o Adopts 400x300 infrared uncooled Vox detector
o AI deep learning algorithm based on neural network, more accurate temperature measurement and lower false warning rate
o Accurate single-person and multi-person high temperature auto tracking and warning
o Equipped with black body, real-time temperature calibration, higher accuracy
o Face recognition detection function, more intelligent
o Stand-type, easy to move, standard PC with powerful analysis software

Applications
o Large-scale temperature screening of airports, railway stations and more.
o Control and reduce the spread of virus with fever symptom, such as Ebola, SARS, and Zika, Novel Coronavirus…



Sigma 160AI
Artificial Intelligence Face Recognition (with or without mask) and temperature measurement for fever detection

Specifications
Resolution: 160x120
Temperature Range: +30℃ ~ +45℃
Temperature Accuracy: ±0.3℃ (without black body); ±0.2℃ (with black body)
Measurement Distance: <3m
FOV: 50°x 39°/7mm
CCD Camera Resolution: 2MP
CCD Camera FOV: 60° 900M CPU*2
Internal Storage: 1GB
LCD: 1280x800, 12inch
Format: Video H.264 /H.265 MPJPEG, Codec
Audio MP3
Picture MPEG
WIFI (optional), RS485, LAN available



Sigma G300 series

Infrared Body Temperature Measurement with accuracy of ±0.3℃/ Face recognition scanner /Gate attendance terminal

Sigma G300 a high-performance high-speed thermal detection camera with a built-in face recognition reader. The technology behind this device was developed in order to better prevent the spread of viruses and illnesses by rapidly identifying fever and potential cases. This unique temperature reading biometric device supports facial recognition even with a face mask on.

Specifications
Power adapter: 12 V 3 A power supply (DC head for DC 5.5 mm universal standard interface)
Dimensions: 190(L) x90(W) x 26(D) mm
Weight: 0.5kg
Ambient temperature: -20℃ to 50℃

Relative humidity: 10% to 85%

Storage capacity: 1000000 traffic records, 3000 faces, 3000 palm prints ,3000 passwords (Features that can only be customized by customers)
Speed of recognition: ≤0.5S
FRR : <0.01%
FAR: <0.001%

Communication mode: U-disk,TCP/IP(Features that can only be customized by customers)
Wegan signal: Wegan output, can be used as a read head
Keyboard: Touch screen

Functions:
1. Non-contact long-range temperature measurement (0.5 meters). Voice reminder for abnormal body temperature, reducing the risk of cross-contact;
2. Live detection, reject photos and videos, more accurate identification;
3. Large-capacity storage: 1,000,000 pass records, 3000 faces, 3000 passwords, 3000 cards (optional);
4. Users can independently set up the mask detection function, with voice reminder for the mask absence
5. Non-contact palm print recognition, even if fingers are dirty, frayed and peeled, can be easily identified;
6. U-disk time attendance, one-click import data, both access control and time attendance, automatically generate reports;
