Data Loggers

A data logger is a device that can be used to store data. At Sigma Hellas what we consider as a data logger is a stand alone device that can read various types of electrical signals and store the data in internal memory for later download to a computer.

The advantage of data loggers is that they can operate independently of a computer, unlike many other types of data acquisition devices. Our Data loggers are available in various shapes and sizes. The range includes simple economical single channel fixed function loggers to more powerful programmable devices capable of handling multipple inputs.

Temperature loggers

model 174

Miniature Temperature Data Logger - ideal for transported products

  • Internal Temperature Sensor with -30°C to 70°C Measurement Range
  • Stores 16,000 Reading in Non-Volatile Memory
  • Sampling Rate of 1 Minute to 24 Hours
  • User Replaceable Battery with 500 Day Life
  • Kit Includes Logger, Wall Bracket, Certificate of Conformance, Batteries, User Manual and USB Interface
  • Requires Software and USB Interface

Technical Data

Measuring range: -30°C...+70°C
Resolution: 0,1°C
Accuracy:  ±0,5 °C (-30 to +70 °C)
Memory: 16000 values
Display: LCD, 1-line, -30...65°C
Probe: internal NTC-Sensor
Measuring rate: 1m...24h (selectable)
Working temp.: -30°C...+70°C
Storage temp.: -40°C...+70°C
Battery Type: Lithium (2 x CR2032)
Battery change by user
Housing: Plastic with protection rating IP 65
Dimensions: (LxWxH) 55mm x 35 mm x 14m

Features:

  • High data integrity, even with empty battery
  • Large measurement data memory
  • Watertight in accordance with IP65
  • Compact and robust
  • Conforms to EN12830
  • Issue of alarms via display
  • Data transfer to the PC via USB interface
  • Reliable temperature measurement for the monitoring of cold chains and sensitive goods during storage and transport
  • Easy readout of data and transfer to a PC via our USB interface

model 175-T1

One Channel Temperature Data Logger with Internal NTC Sensor

Features

  • Professional temperature monitoring for refrigerated and deep freeze rooms
  • Compact data logger for long term monitoring of temperature, e.g. during transport of goods
  • All new data loggers in the 175 series including the 175T1 have a USB and an SD card interface

Technical Data

-35°C to 55°C (-31°F to 13 °F) Measurement Range with ±0.5°C (±0.9°F) Temperature Accuracy
Resolution: 0.1°C (0.1°F)
Stores up to 1 Million Measured Readings in Non-Volatile Memory or onto Removable SD Card
3 Digit LCD Display Shows Current Temperature, Battery Status and Visual Alarm Warnings
User Selectable Sampling Rate of 10 Seconds to 24 Hours
Communications : USB Cable to PC & SD Card
Rated IP65 and Conforms to European Union EN12830 Directives
Operates on (3) AAA User-Replaceable Batteries with 3 Year Battery Life
Software ( Basic Ver 5.0)
Dimensions : 89mm x 51mm x 25.4mm (3.5" x 2.0" x 1.0")
Includes Wall Bracket, Batteries and Certificate of Conformance

Applications
Monitor Temperature Measurements in Refrigerators, Freezers, Cold Rooms and Display Cases

Other Temperature Loggers

SDL SERIES TEMPERATURE DATA LOGGERS WITH INTEGRATED PRINTER

A datalogger designed for installation in the driver´s cabin. Connected temperature probes are located in chilled or frozen space behind. A print out of the record is possible any time.

The advantage is low cost operation. The needle printer requires only normal paper in 58mm rolls of 30 meters length. Printing of 9000 lines of record is possible with one roll. The ribbon catridge can print 3 rolls of paper.

Main printer/logger applications: Food or pharmaceuticals transport

Features:

Measuring temperature range: -90 to +260°C
Operating temperature range: -30 to +65°C
Operating temperature range of the printer: -20 to +50°C
Compatible temperature probes: Pt1000 sensor with maximum cable length 10 meters
Accuracy of the input without probe: ±0.2°C
Resolution: 0.1°C
Logging interval: user selectable from 1 minute to 60 minutes
Total memory capacity: 1MB - 172 032 records from one probe, 102 400 records from two probes
Power: (up to 5 years with 15 minutes interval and one probe)
9 to 32Vdc, protected against alternator load shedding+internal Lithium battery
Consumption while Printing: approximately 8 W
Consumption - not printing: approximately 0.1 W
Dimensions without holders, connectors: 175 x 124 x 51 mm (w x h x d)
Protection rating: IP20

Humidity/Temperature Loggers

174H Mini Temp/Humidity Data Logger

The mini data logger for temperature and humidity, 174H, is ideal for monitoring temperature and humidity sensitive goods in storage. The 174H also monitors building climate, continuously, securely and unobtrusively. The free software of 174 allows fast programming of the data logger and easy analysis. Ideal for monitoring ambient temperature and humidity levels of sensitive goods in storage.

Technical Characteristics

Memory 16.000 readings
Storage temperature -40 to +70 °C
Operating temperature -20 to +70 °C
Battery type  2 lithium batteries (CR2032)
Dimensions 60 x 38 x 18,5 mm
Probe - NTC
Meas. range -20 to +70 °C
Accuracy ±0.5 °C (-20 to +70 °C)
Resolution 0.1 °C
Probe - humid. sensor, cap.
Meas. Range 0 to 100 %rF
Accuracy ±3 %RH (2 to 98 %RH) ±0.03 %RH/K
Resolution 0.1 %RH

       Features

  • Humidity sensor with long-term stability
  • High data integrity, even with empty battery
  • Large measurement data memory
  • Display of the current temperature or humidity value
  • Large measuring range
  • Compact and robust
  • Issue of alarms via display
  • Data transfer to the PC via USB interface
  • Low-cost temperature and humidity monitoring for living, work and storage rooms
  • Easy readout of the data and transfer to a PC via our USB interface

In order to operate you require the docking station part which is included in the price when purchasing a set

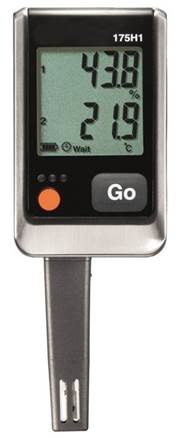

175 H1 - 2 channel data logger

Round-the-clock monitoring and logging of temperature, relative humidity and dew point

Super-size memory for long-term measurements and up to 1 million readings, battery life 3 years

Shorter reaction times and accurate measurements with external humidity sensor

Free software download (ComSoft Basic)

Saving energy, archiving, storing goods, creating a comfortable indoor climate – if you can’t analyze the temperature and humidity, you won’t get optimal results. The testo 175 H1 is designed to carry out reliable long-term measurements and log these crucial values for you.

Product Description

Overview

The 175 H1 data logger measures, monitors and logs the temperature and relative humidity in buildings and closed rooms. The logger comes with an external humidity sensor (stub) for shorter reaction times and a lock to prevent it from being easily stolen or tampered with.

In addition to the current temperature and humidity values, the logger can also log and display dew point values. Other information including adjustable threshold values, breached thresholds and remaining battery power can also be read off the large, clear display.

Security and comfort on all levels

The 175 H1 ensures a high level of data security and reliable measurements based on leading-edge technology. The logger has a super-size memory that can save up to 1 million readings and an extended battery life of up to 3 years. This gives you the freedom to read out the data at longer intervals, even when the measuring cycles are shorter. The triple AAA batteries included in the scope of supply can be easily replaced by the user.

Programming and Analyzing Your Data Loggers

Choose 1 of 3 software versions to program or read out your loggers or to analyze the measuring data you have obtained on your PC:

Software ComSoft Basic - included - allows you to program your logger and analyze the data quickly and easily

Software ComSoft Professional - optional - provides you with additional possibilities and a more detailed analysis of the temperature and humidity values

Software ComSoft CFR 21 Part 11 - optional - ideal for the special demands of the pharmaceutical sector in compliance with 21 CFR Part 11

PLEASE NOTE: You will need a USB cable (not included in scope of supply) to program your data logger. The data can be transferred to your PC either via USB cable or SD card. Both are optionally available as accessories which can be ordered together with your 175 H1.

Areas of application for the 175 H1 data logger

The 175 H1 professional data logger is ideal for round-the-clock monitoring of temperature and humidity values in closed rooms. The 175 H1 can monitor the indoor climate in buildings, storage facilities and archives and help create a comfortable climate in the workplace. The logger`s external humidity sensor (stub) is connected directly to the housing for shorter reaction times.

Delivery Scope

175 H1 - 2-channel temperature and humidity data logger with external humidity sensor (NTC/capacitive humidity sensor), incl. wall holder, lock, batteries and calibration protocol

Technical

Temperature - NTC

Measuring range: -20 to +55 °C

Accuracy: ±0.4 °C (-20 to +55 °C)

Resolution: 0.1 °C

Humidity - Capacitive

Measuring range:             0 to 100 %RH*

Accuracy: ±2 %RH (2 to 98 %RH) at +25 °C

Resolution: 0.1 %RH

* Not for condensing atmospheres. For continuous use in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12 h), please contact us via our website.

Dewpoint (calculated)

Measuring range: -40 to +50 °Ctd

Accuracy: +0.03 %RH/K

General technical data

Dimensions: 149 x 53 x 27 mm

Operating temperature: -20 to +55 °C

Protection class: IP54

Channels: 2 internal

Warranty: 2 years

Measuring rate: 10 s - 24 h

Battery type: 3 x AIMn type AAA or Energizer

Battery life: 3 years at 15 min. meas. rate

Memory: 1,000,000 measuring values

Storage temperature: -20 to +55 °C
