Exhaust Gas Leak Detector

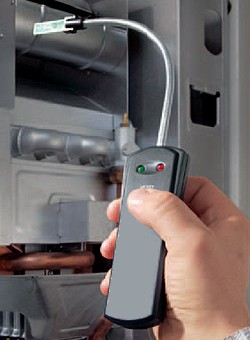

Model 317-1 - a leakage detector with a bendable probe. Incl. battery

Reliable detection of leaking exhaust gases
Flexible probe that bends for inaccessible points
Audible and visual alarm

The 317-1 leakage detector efficiently locates escaping exhaust gases. This practical instrument immediately gives an optical and acoustic alarm making a visual inspection unnecessary.

The bendable probe makes it ideal for use at hard-to access points.

Technical data

Reaction time 2s
Length of probe pipe 200 mm
Diameter/Probe pipe tip Ø 10 mm
Dimensions 128 x 46 x 18 mm
Weight 300 g

317-3 CO monitor

includes leather bag, headphones, wrist strap, self-test function, sampler

Model 317-3 CO monitor detects the presence of carbon monoxide in the surrounding area and warns the user both visually and audibly about dangerous gas concentrations e.g. during maintenance and service work.

3 year warranty on CO sensor
Visual and audible alarm
No zero phase, instrument can be used immediately
Adjustable alarm threshold
CO zeroing at site

Technical Data

Operating temp: ................. -5 to +45°C
Battery type: ................. 2 batteries Type AAA
Battery life: ................. 150 h (with alarm off)
Probe type: ................. CO
Meas. Range: ................. 0 to +1999 ppm
Accuracy: ................. ±10 ppm (0 to +99 ppm)
................. ±10 % (+100 to +499 ppm)
................. ±20 % ( >+500 ppm)
Reaction time ................. (t 90): 40 sec
Resolution: ................. 1 ppm
