Thermography & Thermal Imaging

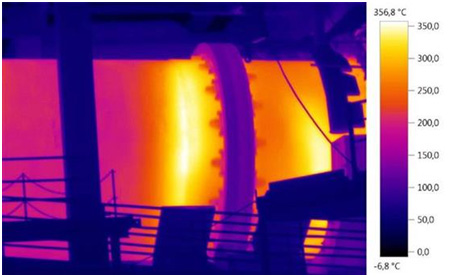

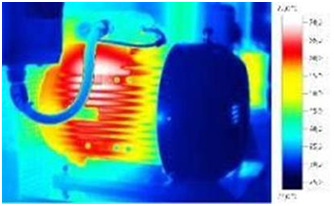

All objects above the absolute zero temperature will emit infrared radiation which is expressed with the  emission factor ε. Therefore, using a thermal image camera is an excellent way to measure thermal variations.   Abnormal temperature profiles at the surface of an object are indicative of a potential problem.

Infra-red thermography is a widely accepted technology that can be applied to various electrical and mechanical systems in the Marine Industry.
Thermography can play a very important function in maintaining the safety and reliability of marine equipment and facilities where system failure could lead to catastrophic losses of vessel and possibly its crew.

See our full range of thermal imaging cameras below.

865 - thermal imager

The 865 thermal imager combines all the important properties required for high-quality thermographic measurement – it is accurate, robust, fast and reliable. The 865 provides high-quality thermography at an affordable price and keeps going even in tough working conditions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Very good image quality: IR resolution of 160 x 120 pixels, via integrated SuperResolution Technology 320 x 240 pixels

Visualizing temperature differences from 0.12°C

868 - thermal imager with App

The 868 thermal imager is characterized by its professional measuring performance and its easy handling. It has the best thermal image quality in its class, an integrated digital camera and impressive smart functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Very good image quality: IR resolution of 160 x 120 pixels, via integrated SuperResolution Technology 320 x 240 pixels

Smart and networked: the free Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.

Integrated digital camera

Innovative functions, such as ScaleAssist, for comparable thermal images in building thermography

Automatic detection of hot and cold spots

Extensive accessories included: case, pro software, USB cable, lithium-ion rechargeable battery

870-1 - Thermal Imaging Camera

The 870-1 thermal imaging camera was developed together with professionls in the field for typical industrial and commercial applications and facility management. State-of-the-art technology that is guaranteed easy to use.

Easy to use with one hand allowing you to work faster and more efficiently

Superior image quality: IR resolution 160 x 120 pixels, SuperResolution technology to 320 x 240 pixels

Measures the smallest of temperature differences – thermal sensitivity < 100 mK, automatic hot and cold spot trackers

Wide field of view: focus free 34°lens

870-2 - Thermal Imaging Camera (incl. case)

The 870-2 is an easy-to-use, one-hand thermal camera that provides you with professional thermal images. Similarly versatile as its smaller brother, the 870-1, but with onboard digital camera.

Easy to use, one-hand camera for faster thermal imaging for industrial and commercial applications and Facility Management

Superior image quality: IR resolution 160 x 120 pixels, image enhancement to 320 x 240 pixels with SuperResolution technology

Precise measurements: thermal sensitivity < 100 mK, focus free 34°lens, automatic hot/cold spot trackers

Onboard digital camera provides real image for each thermal image

871 - thermal imager with App

The 871 thermal imager combines high infrared resolution with professional measuring performance and easy handling. Its high-quality pixel detector, an integrated digital camera and, last but not least, the innovative functions are the features that impress. The Thermography App enables the  871 to offer smart thermography to meet professional requirements in industry and trade. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Very good image quality: IR resolution of 240 x 180 pixels, via integrated SuperResolution Technology 480 x 360 pixels

Smart: the free Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.

Wireless networking: wireless transmission of readings from the 770-3 clamp meter and the 605i thermohygrometer (both available separately)

Innovative functions, such as ScaleAssist and ɛ-Assist for comparable, error-free thermal images

872 - thermal imager with App

The 872 thermal imager gives you the best possible support for your work in professional industrial and building thermography. Take thermal images quickly, reliably and smartly with the highest image quality, very good thermal sensitivity and innovative functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Highest image quality: IR resolution of 320 x 240 pixels, via integrated SuperResolution Technology 640 x 480 pixels

Precise measurement: thermal sensitivity of 0.06°C

Smart and wireless: use your mobile device with the free Thermography App and wirelessly transmit readings from the 770-3 clamp meter and the 605i humidity measuring instrument (both available separately)

Innovative functions, such as ScaleAssist and ɛ-Assist for comparable, error-free thermal images

875-1i - Infrared camera with SuperResolution

Ideally equipped for industrial and building thermography: The 875-1i thermal imager means even the smallest temperature differences can be seen with a thermal sensitivity of < 50 mK. You can create real images with the built-in digital camera and assign these to the thermal images.

Very good image quality: IR resolution 160 × 120 pixels, with SuperResolution Technology 320 × 240 pixels

Precise measurement: thermal sensitivity < 50 mK, high-quality 32° × 23° lens with manual focus, automatic hot/cold spot detection

Built-in digital camera creates a real image in parallel to the thermal image

Comprehensive accessories, including: robust case, pro software, SD card, carrying strap, mains unit and lots more



875-2i - Thermography kit with SuperResolution

Get your 875-2i professional thermal imaging camera and telelens set now and the accessories you need are only an arm’s length away!

875-2i professional thermal imaging camera: thermal sensitivity < 50 mK, built-in digital camera with power LEDs, optional moisture measurements possible

9° x 7° telelens for the precise tracking of objects included in set

Extensive range of accessories included: rugged case, additional battery, quick charger, SD card, shoulder strap, lens cloth and much, much more

All the accessories you need just an arm’s length away

875-2i - Infrared camera with SuperResolution

With the 875-2i thermal camera, you can do your industrial and building thermography work even more easily and quickly: The built-in digital camera and voice recording via the headset make documentation and assignment of thermal and real images easier.

Very good image quality: IR resolution 160 × 120 pixels, with SuperResolution Technology 320 × 240 pixels

Thermal sensitivity < 50 mK, high-quality 32° × 23° lens, automatic hot/cold spot detection and optional temperature measurement up to +550 °C

Including a built-in digital camera and voice recording via a headset

Building thermography: Direct display of the risk of mould via traffic light colours

885 - Thermal imager: ideal for industrial and building thermography

Voltage installation inspections, high temperature measurements and circuit board analysis on the one hand. Solar panel system inspections, complete building envelope thermography and construction thermography for energy saving advice on the other. The 885 thermal imaging camera is excellently equipped for both professional industrial and building thermography.

885 professional thermal imaging camera: resolution 320 x 240 pixels, optional SuperResolution enhanced to 640 x 480 pixels, thermal sensitivity < 30 mK

Optional high temperature measurements up to 1 200 °C

Panorama image function, SiteRecognition technology, humidity calculation, JPEG storage, optional: sequence storage in the unit and much, much more

Built-in digital camera, optional interchangeable lens, many added features, wide range of accessories included in delivery (carry case, SD card, pro software etc.)



885-2 Kit - Thermography kit

The 885 thermography kit with matching telephoto and wide range of accessories for professional industrial and building thermography and energy advice.

885 professional thermal imager: resolution 320 x 240 pixels, optional SuperResolution enhanced to 640 x 480 pixels, thermal sensitivity < 30 mK

11° x 9° telephoto for precise measuring of far-off objects

Panorama image function, SiteRecognition technology, humidity calculation, JPEG storage, optional: sequence storage in camera and much more

All your accessories at your fingertips: rugged carry case, lens pouch, additional battery, quick charger, SD card etc.

890-2 - Thermal Imaging Camera

With the thermal imager 890-2, you are ideally equipped for both professional industrial thermography as well as for building thermography: for inspection of power plants, high temperature measurement, circuit board analysis, control of solar panel systems, complete building thermography, energy consulting among others.

890-2 professional thermal imaging camera: resolution 640 x 480 pixels, with optional SuperResolution technology enhanced to 1280 x 960 pixels, thermal sensitivity < 40 mK

Wide field of view: 42° wide angle lens

Sequence memory in camera optional, humidity calculation, SiteRecognition, panorama image assistant, JPEG memory function, and many, many more practical features

Built-in digital camera, optional interchangeable lens, many more features, delivery includes rugged case, memory card, professional software.

890-2 Set - Thermal Imaging Camera Pro Set

The full package: 890-2 thermal imaging camera pro set for A to Z professional thermography. High-quality thermal imager, standard and telephoto, wide range of accessories.

890-2 professional thermal imaging camera: resolution 640 x 480 pixels, with optional SuperResolution technology enhanced to 1280 x 960 pixels, thermal sensitivity < 40 mK

Wide field of view: 42° wide angle lens; 15° x 11° telephoto for precise measuring of distant objects

Sequence memory in camera optional, humidity calculation, SiteRecognition, panorama image assistant, JPEG memory function, and many, many more practical features

All the accessories at your fingertips: rugged case and lens bag, additional rechargeable battery, quick charger, SD card, lens protection cap etc.















SuperResolution - Upgrade

With the patent-pending SuperResolution upgrade, you can capture extremely high-resolution infrared images (up to megapixel quality) with your thermal imager. The SuperResolution upgrade improves the usable geometric resolution of the thermal image by a factor of 1.6 – with four times as many measuring values.

More accuracy and security in every measurement

More detailed thermal images with four times more measurement values

Real temperature measurement values – no artificial intermediate values

Easy upgrade of your thermal imager via internet
